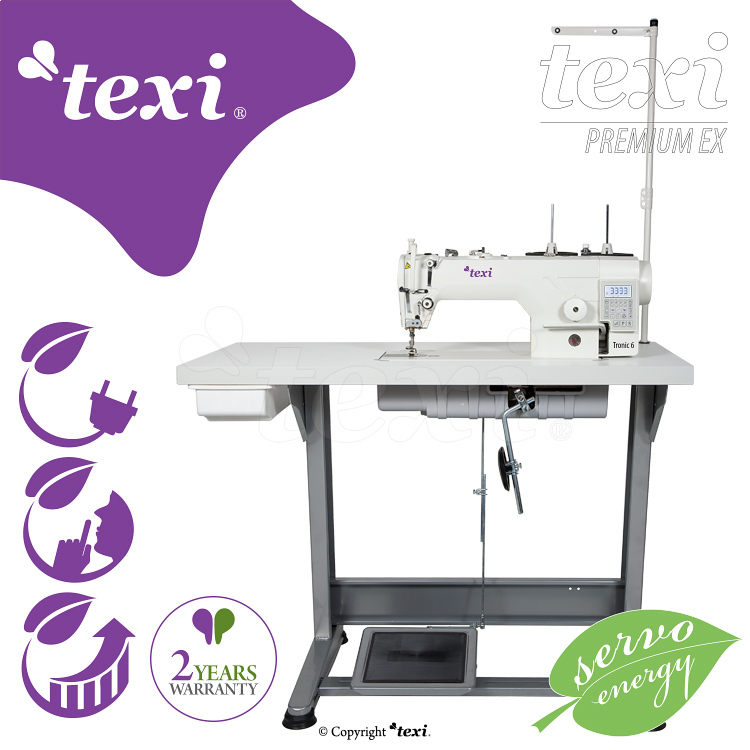

TEXI TRONIC 6 PREMIUM EX

Automatic, mechatronic lockstitch machine with closed lubrication circuit - complete machine - 2 years warranty

Industrial sewing Lockstitch machines

Automatic, mechatronic lockstitch machine with closed lubrication circuit - complete machine - 2 years warranty
Automatic, mechatronic lockstitch machine with closed lubrication circuit - complete machine - 2 years warranty
Automatic, mechatronic lockstitch machine with closed lubrication circuit - complete machine - 2 years warranty
Automatic, mechatronic lockstitch machine with closed lubrication circuit - complete machine - 2 years warranty

Description:

New!

Tronic 6 model is mechatronic, automatic, 1-needle lockstitch machine for light and medium materials.

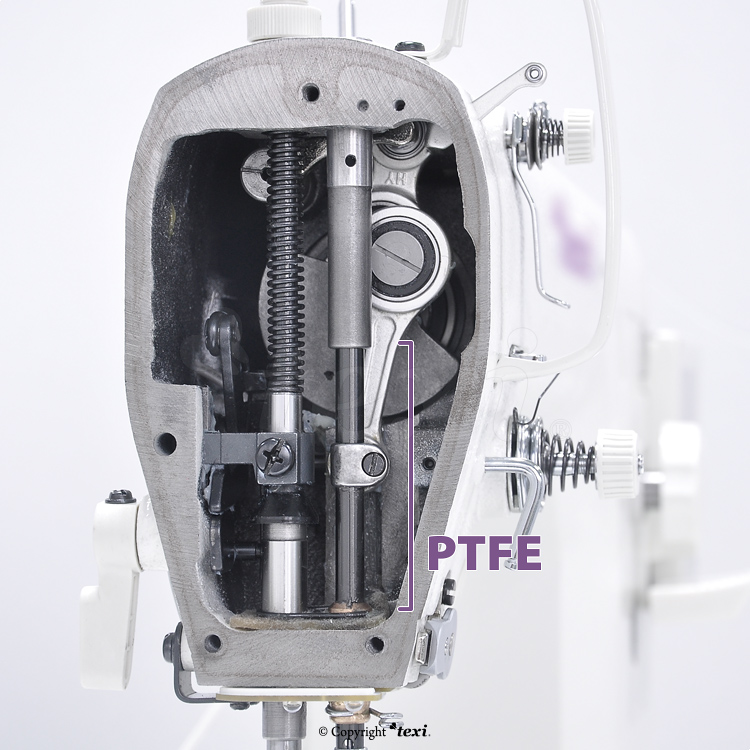

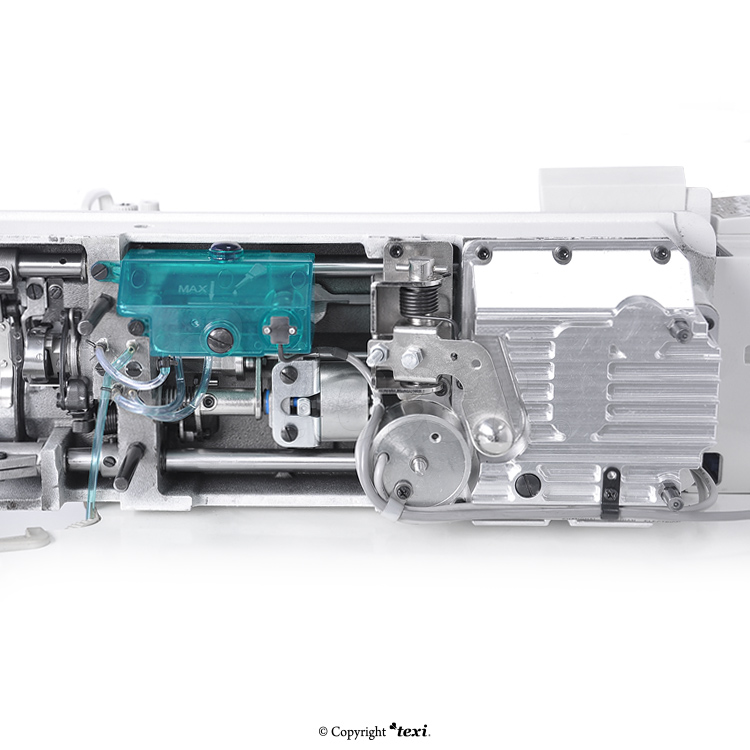

Now equipped with innovative closed lubrication system divided into two sections - first one lubricate hook and have special oil detector that makes sound signal when the oil runs low. Other section lubricate the moving parts, except for dry needle bar protected by PTFE.

Machine is serial equipped with automatic functions:
- for sewing light and medium fabrics
- bottom feed
- voltage 220-240V
- built-in energy-saving AC Servo 550 W motor
- 70% energy-saving
- needle positioning,
- thread trimmer - 5 mm
- max sewing speed 5.000 s.p.m.,
- max. stitch length 5 mm.
- electromagnetic foot lifting - pedal and knee lifter (up to 9 mm, and with use of knee lifter to 13 mm),
- reverse feeding with programmed size of the initial and final bartack,
- programmable sewing sections,

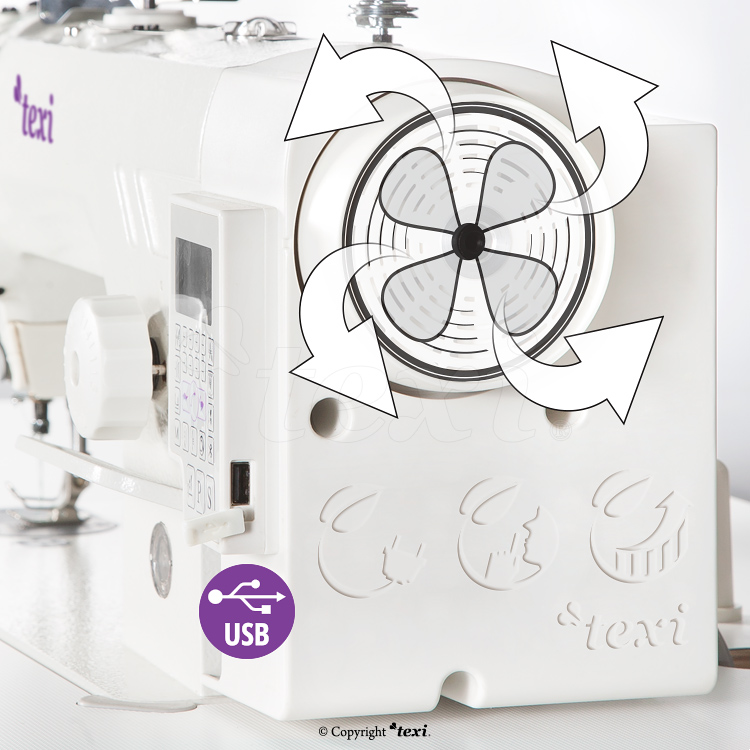

- modern cooling system of motor and control module.
- controller of initial stitch,
- quiet work, minimized vibrations

USB plug included - to be used for battery charging (smartphones and tablets)

Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.

Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations.
AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.

For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

Offered in TEXI PREMIUM EX package

2 YEARS WARRANTY PREMIUM EX
Texi industrial lockstitch machines have 2-year, full warranty.

STAND TEXI PREMIUM SILVER - steel, stable and durable universal stand with height adjustment. Powder painted in silver colour RAL 9006, which fits to line of Ergolinia chairs.

TABLE TOP TSM PREMIUM - the highest quality table top made of moisture resistant birch plywood (30 layer) which perfectly damps vibrations. PREMIUM table top surface is coated with a special laminate with a structure suitable for the textile industry. Maximum resistant to impact, abrasion and splinters. Sides protected by ABS slats. TEXI PREMIUM table tops do not contains harmful ingredients.

TEXI VARIO 8 - set of accessories enhancing quality and facilitating work
1. SMG - magnetic gauge for sewing with equal distance from the needle
2. CR10N 1,0MM - compensating narrow foot 1.0 mm, right
3. RF10 1,0MM - compensation PTFEed foot 1.0 mm, right
4. T35 - PTFE foot for sewing leather and difficult materials
5. P25 - hemming foot 1/8"
6. P36LN - cording foot, left, narrow for sewing in zippers and sewing on the edge
7. P723 - foot for equal stitching, with left and right gauges (patchwork and quilting)
8. DMTS - tailor's tape measure Hoechstmass standard, length 150cm, width 19 mm (made in Germany).

TITANIUM Ti812 - 8 1/2" (22 cm) Titanium coated, professional dressmaker shears with lifetime guarantee.

Enjoy the silence, save energy.

Technical specification:

Type of fabric light, medium
Type of feed bottom feed
Automatic thread trimming yes
Autoamtic needle positioning yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Stitch compensation button yes
Built-in AC Servo motor yes
Type of lubrication closed "dry" circuit
LED lighting of working field yes
Max. stitch length 5 mm
Presser foot lift height 13 mm
Needle system 135x5
Max. sewing speed 5000 s.p.m.
Table top standard 105 x 50 cm
Warranty period 24 months
Max. sewing speed 5000 s.p.m.
Power supply
