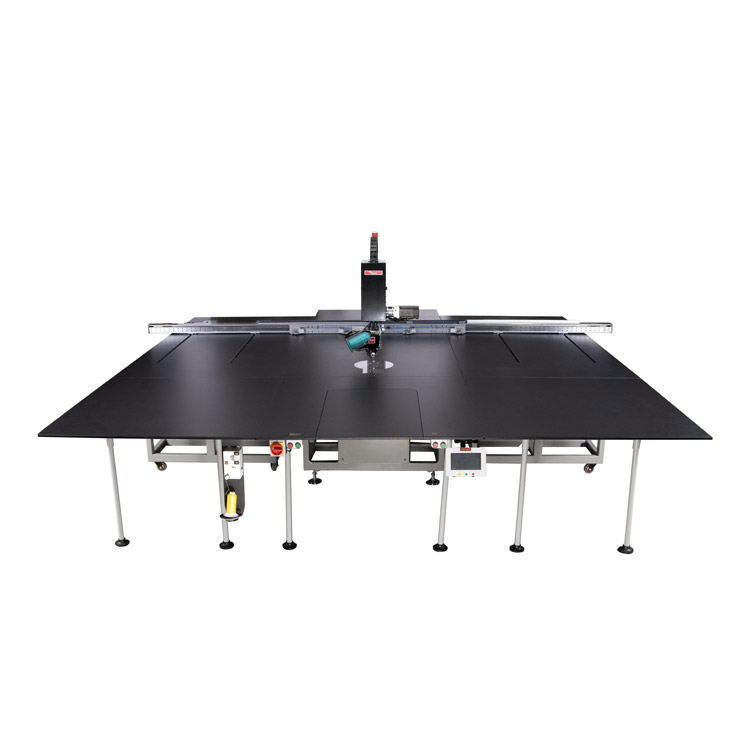

Programmable sewing machine with raised rotary sewing head and independent drives with extra large sewing field

Description:

TEXI FREE 360 XXLF 250X150 is a pattern sewing machine for heavy materials with 360 degrees rotation of machine's head as well as hook unit - both adjusting to direction of sewing. Thanks to this solution the machine makes the stitch precisely and eliminates the risk of stitch skipping, regardless of sewing direction. Model with very large sewing field 2500 mm x 1500 mm dedicated to large area projects.

The construction of the machine allows to lift the sewing head, which enables to lift the presser foot up to 59 mm.
Used in the manufacture of upholstered furniture, car upholstery, yacht upholstery, aviation upholstery, railway upholstery and campervans. Ideal for sewing clothing for uniformed and medical services and their equipment such as backpacks, covers and utensils. Will work well for quilted jackets, coats and sleeping bags. Suitable for sewing pet beds. Template can be adjusted to any element, depends on sewing pattern.

Technical specification:
• 360 degrees rotation of machine's head as well as hook unit - both adjusting to direction of sewing
• built-in fast and precise stepping motors, responsible for sewing head, the hook unit and the work of the rail in the x and y axes
• DELTA 750W servo motor mounted in the machine head, responsible for the drive of the needle bar
• lifting the foot in the rest phase up to 59 mm
• 7-inch LCD touch control panel with USB port for data transfer and storing patterns in internal memory - up to 999 patterns.
• max. stitches amount in pattern is 20.000 stitches.
• editing of already existing as well as programmed patterns
• automatic start-stop switch, pause/continue function
• rotating angle programmable in 0,05° steps
• automatic thread trimmer
• air blowing - cooling the needle,
• thread catcher
• safety switch and thread breaking detection
• max sewing speed 3.000 s.p.m.
• stitch length 0,5 - 12,7 mm
• standard equipped with rail for effective sewing area 2500 x 1500 mm.
• open frame 70 x 70 cm is added on the set of new machine. Suitable templates we will prepare according to customer's order.
• external bobbin winder
• RFID card scanner - the machine can store patterns on RDID card, so it's easy to choose the pattern you want to use.
• supported file extensions: .dst, .dxf, .vdt,

Compressed air necessary 5 bar.

Needle system: 135x17. For automatic multidirection sewing machines use SCHMETZ needles in MR or SERV 7 version, with correct needle points, depending on the fabric.
