15-needle embroidery machine with base and head for sewing the ribbon

Description:

15-needle industrial embroidery machine with an additional head for sewing tape. Perfect for flat embroidery, embroidery on hats and ready clothes. Thanks to the open space under the hoop, embroidering large surfaces is easy and does not crease embroidered fabrics. The cylindrical arm will be useful when embroidering on finished products, and a large number of hoops as standard allows you to optimize your work. While using one of them, the other can be prepared for work. Solid wheels mounted in the base allow easy transport of the embroidery machine to any place.

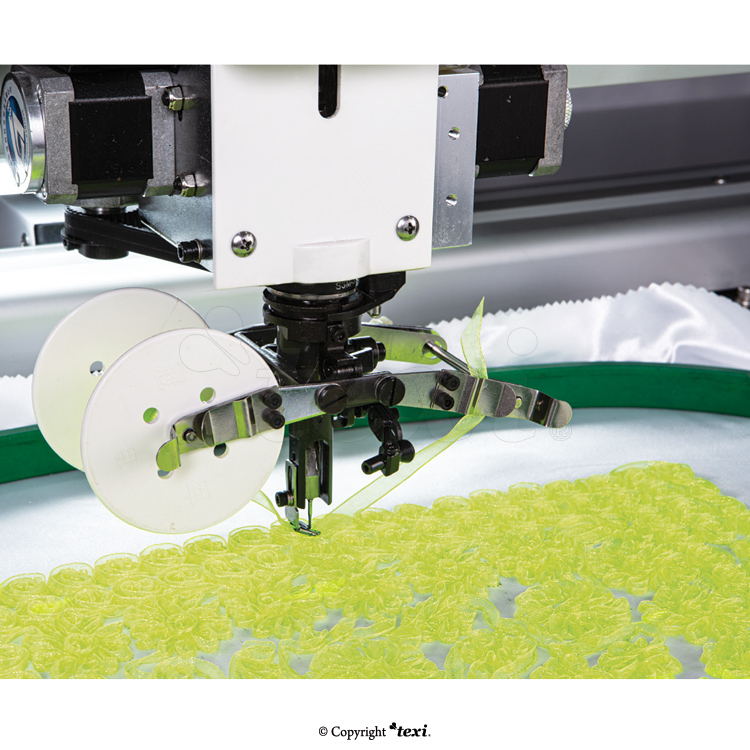

The second head is used to sew the tape. It has one needle and a tape feeder, for which you can use a tape with dimensions from 3 to 20 mm. The maximum sewing speed is 850 stitches per minute.

Technical specification:
- 2 heads
- 15 needles in the embroidery head
- 1 needle in the tape head
- max. embroidery area: 490 x 345 mm

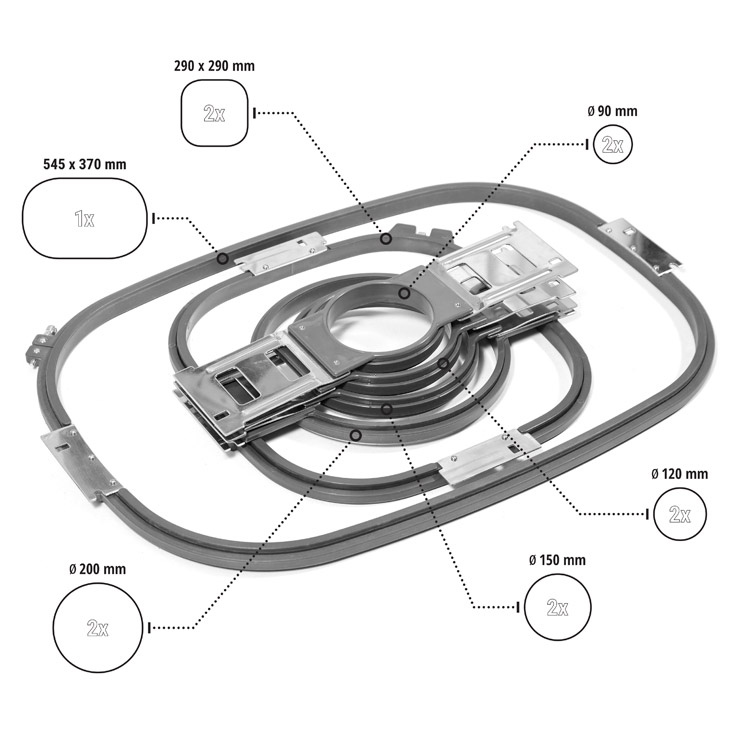

- 13 hoops (7 sizes) as standard:
1) 2 x round with a diameter of 90 mm,
2) 2 x round with a diameter of 120 mm,
3) 2 x round with a diameter of 150 mm,
4) 2 x round with a diameter of 190 mm,
5) 2 x square: 290 x 290 mm,
6) 1 x oval 545 x 370 mm,
7) Frame 560 mm x 380 mm with stabilizing table.
- equipped with tooling for embroidering the caps
- 270 ° hat holder
- cylindrical arm
- 8 '' touch panel with necessary functions (START, STOP button, thread color change, frame shift keys, embroidery status, numeric keys for needle selection)
- the ability to edit, delete, copy and scale the embroidery on the panel
- real-time tracking of work on the panel
- automatic thread cutting
- thread break sensor
- external thread spool
- max. sewing speed of the embroidery head 1,000 stitches / minute
- max. sewing speed head to the ribbon 850 stitches per minute
- the embroidery stroke can be checked
- built-in USB socket
- multilingual menu (including in Polish)
- laser embroidery marker
- supports popular formats available on the market: Tajima, Barudan, ZSK (.dst, .dsb, .fdr)
- built-in LED lamp
- safety switch
- embroidery machine dimensions 143 x 77 x 160 cm
- energy-saving SERVO 150 W motor
- 220-240V or 110V 50/60 Hz power supply
- weight 190 kg

For this machine, we recommend SCHMETZ needles, DBXK5 in appropriate thicknesses.

Possible optional equipment:
- professional embroidery design software - CHROMA inspire
- embroidery hoop for belts
- embroidery hoop for shoes
- tooling for sewing sequins
- tooling for sewing decorative cords and cord

One year warranty

Make an appointment - write to shop@strima.com or call us: +48 61 8950 950
