TEXI CATENACCIO PREMIUM EX

Electronic bartacking machine - complete machine with 2 years warranty

Industrial sewing Bartacking machines

Electronic bartacking machine - complete machine with 2 years warranty
Electronic bartacking machine - complete machine with 2 years warranty
Electronic bartacking machine - complete machine with 2 years warranty
Electronic bartacking machine - complete machine with 2 years warranty
Electronic bartacking machine - complete machine with 2 years warranty

Description:

Universal electronic bartacking machine. Serial equipped with clamps 20 x 4.5 mm, which allow to obtain max. bartack length 18 mm.

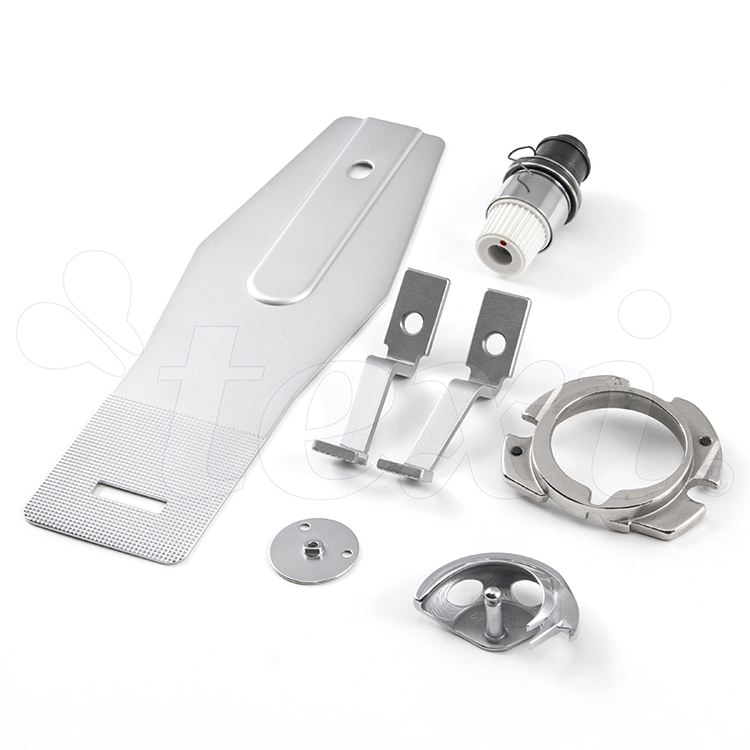

Includes set for sewing light and medium materials and set for heavy materials (clamp, feed plate, needle plate, thread tension unit, hook and hook holder). 15 bartacking patterns in standard, that can be modified and saved on the control panel. Direct and fast access to 5 preferred patterns. After changing the clamp to appropriate, access to 100 fixed patterns (vertical, horizontal, half-round, round.).

Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head.

Technical specification:
- for sewing light, medium and heavy fabrics
- standard clamp size 20 x 4.5 mm
- 15 bartacking patterns in standard
- 100 bartacking patterns in option (after changing the clamp to appropriate)
- possibility of patterns editing
- maximum sewing speed 3.000 s.p.m.
- voltage 220-240V
- integrated, energy-saving AC Servo motor
- energy-saving LED lamp
- needles system 135x5

Additionally, as an option, 6 other clamps: 21x5,1 mm, 27x5 mm, 10x4,5 mm, 5,6x23 mm, 2x20 mm, 20x40 mm.


Offered in TEXI PREMIUM EX package

2 YEARS WARRANTY PREMIUM EX
Texi bartacking machines have 2-year, full warranty.

STAND HD PREMIUM SILVER - steel, stable and durable stand for heavy machines with height adjustment (69-83 cm) and oilier holder. Powder painted in silver colour RAL 9006, which fits to line of Ergolinia chairs.

TABLE TOP TC PREMIUM - the highest quality table top made of moisture resistant birch plywood (30 layer) which perfectly damps vibrations. PREMIUM table top surface is coated with a special laminate resistant to impact, abrasion and splinters. Sides protected by ABS slats. TEXI PREMIUM table tops do not contains harmful ingredients.

TITANIUM Ti500 - 5" (12 cm) titanium coated thread clip with lifetime guarantee.

Enjoy the silence, save energy.

Technical specification:

Type of fabric light, medium, heavy
LED lighting of working field yes
Needle system 135x5
Max. sewing speed 3000 s.p.m.
Table top standard 105 x 50 cm
Warranty period 24 months
Max. sewing speed 3000 s.p.m.
Standard clamp size 20 x 4.5 mm
Max. bartack size 18 x 4 mm
Bartacking patterns (standard clamp) 15 mm
Bartacking patterns (after changing clamp) 100
Power supply 220-240 V
