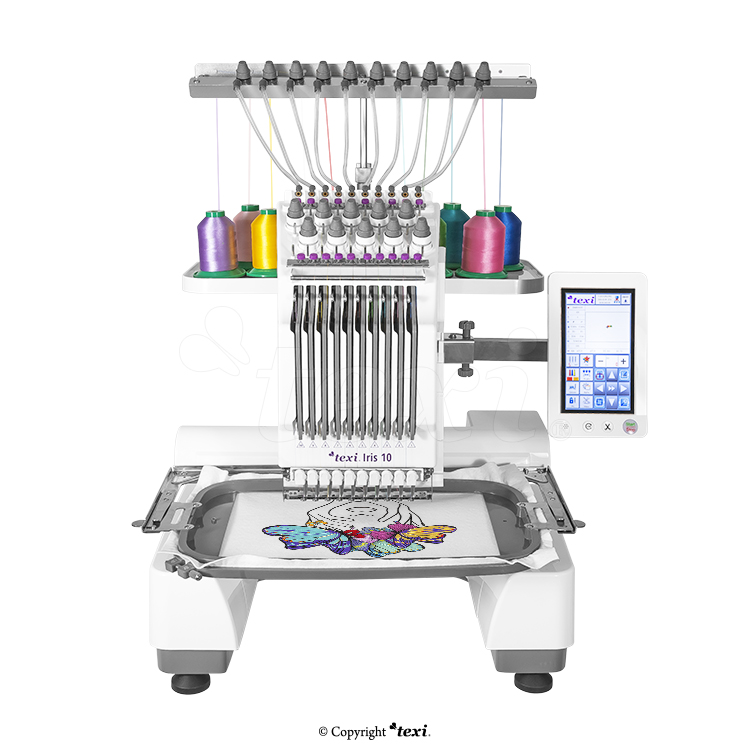

TEXI IRIS 10

Compact, one-head, ten-needle embroidery machine

Industrial sewing industrial embroidery machines

Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine
Compact, one-head, ten-needle embroidery machine

Description:

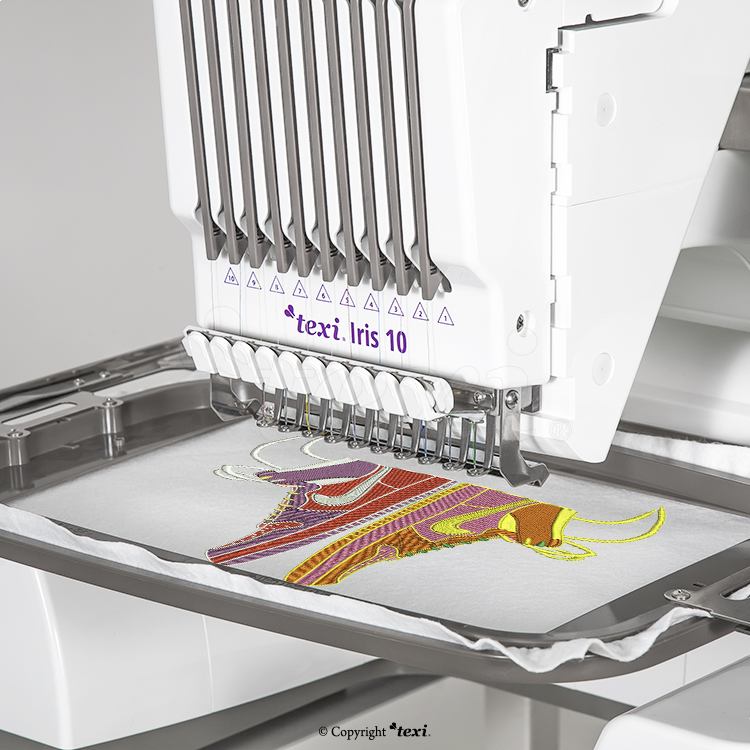

FUNCTIONALITY IN A COMPACT FORM One-head, 10-needle compact embroidery machine. Perfect for plain embroidery, embroidery on caps and ready garments. Cylindrical arm is useful for embroidering on ready products.

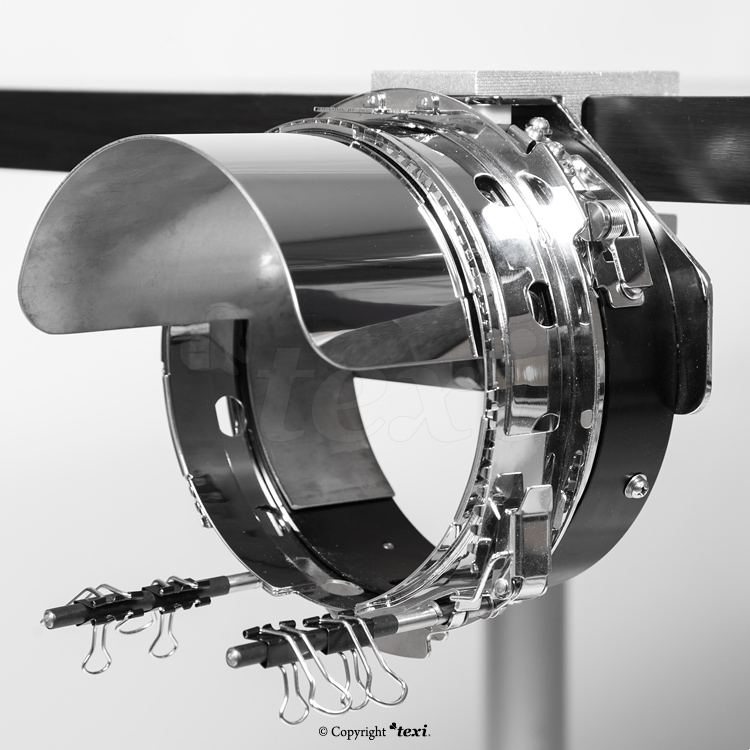

Iris equipment for embroidering on cap

Equipment for embroidering on cap

Equipment for embroidering on cap

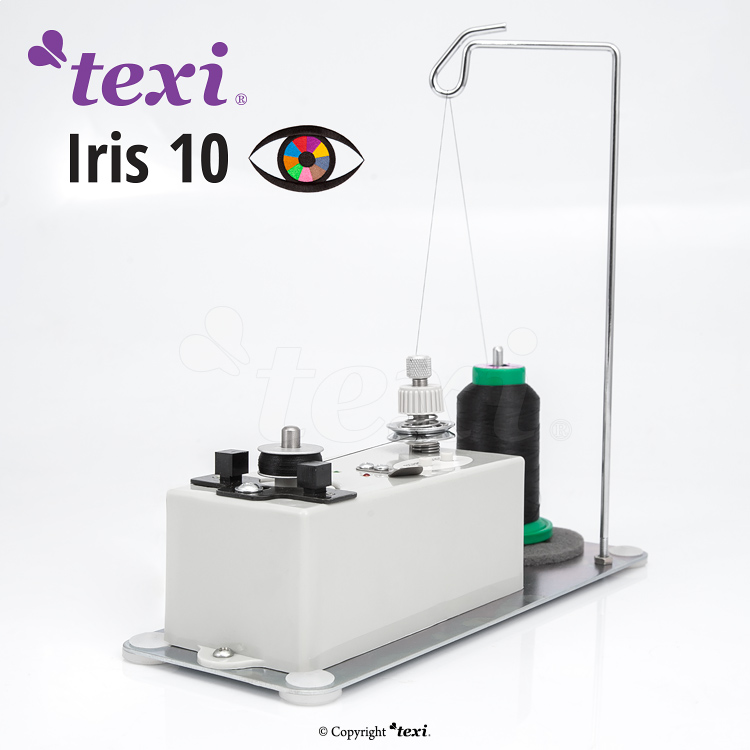

Thread winder as a standard equipment

Thread winder


Technical specification:
- 1 head
- 10 threads / needles
- embroidery area: up to 310 x 210 mm

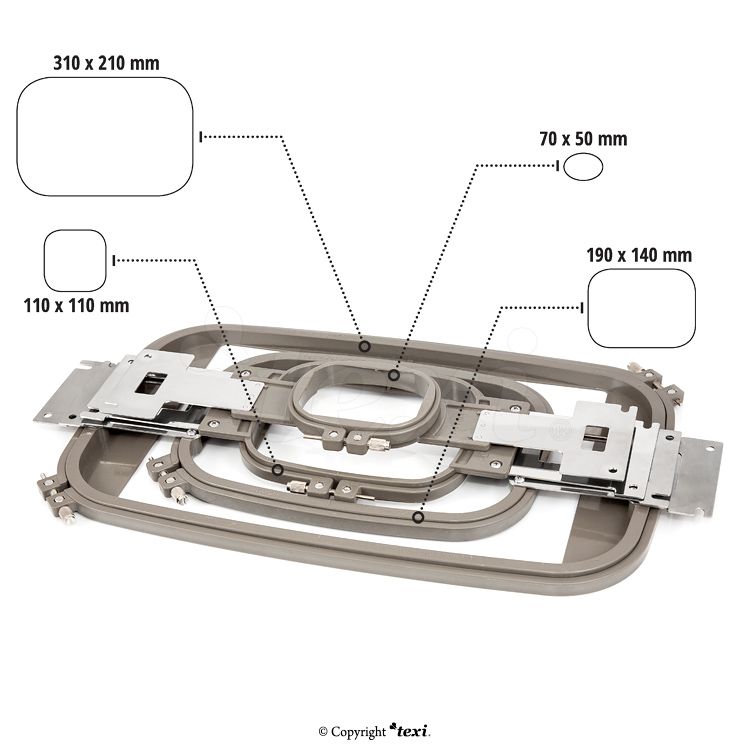

- 4 hoops in standard:
1) 1 x oval 70 x 50 mm,
2) square 110 x 110 mm
3) rectangular 190 x 140 mm
4) rectangular 310 x 210 mm
- equipment for embroidering on cap (2 hoops, preform handle cap, handle to the machine); 220 ° wide angle cap system
- cylindrical arm

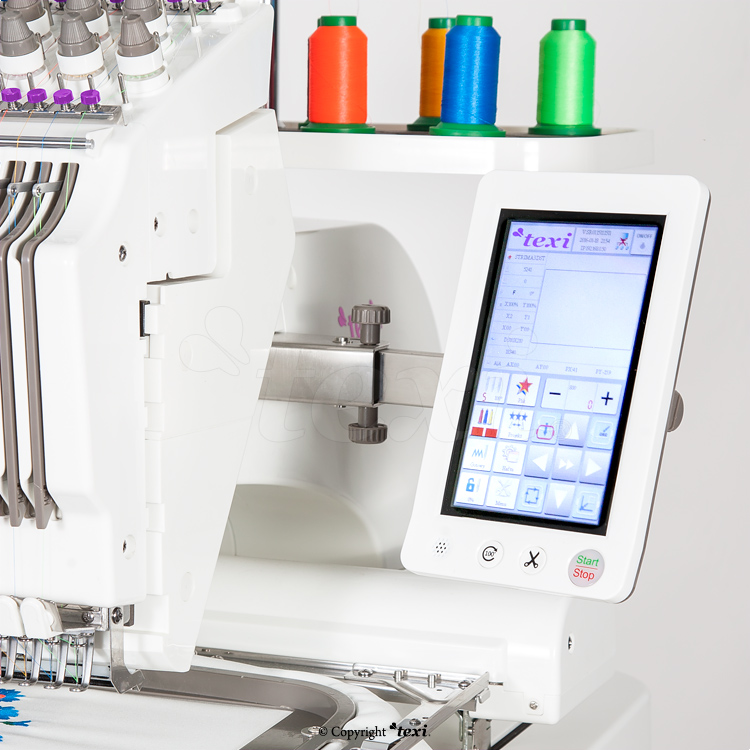

- 7'' touch panel with necessary functions (START, STOP key, auto thread trimming, color change, frame move, embroidery status, numerical keys for needle choice)
- possibility of edition, erasing, copying, scaling of the design on the panel's screen
- following the progress of the embroidery in real time on the panel
- automatic thread trimming system
- auto thread break detection
- adjustable threads mast helps in transport
- external thread winder as a standard equipment
- max. sewing speed 1.000 stitches/min.
- possibility of checking the contour of the embroidery
- built-in USB port
- multilingual menu
- works with all popular formats: Tajima, Barudan, ZSK (.dst, .dsb, .fdr)
- built-in LED light
- machine's sizes: 64 x 57 x 78 cm
- 150 W energy saving SERVO motor
- power supply: 220-240V / 50-60 Hz
- weight 45 kg

For this machine we recommend SCHMETZ needles, system DBXK5 in proper sizes.

Optional equipment:

- professional embroidery design software - WILCOM DECO STUDIO LITE E3 - in special price with embroidery machine
- solid stand with wheels that's helps in easy transport

1 year warranty

Technical specification:

Needles quantity of embroidery machine 10
Max. embroidery area 310 x 210 mm
Touch screen Yes
Max. sewing speed 1000 s.p.m.
