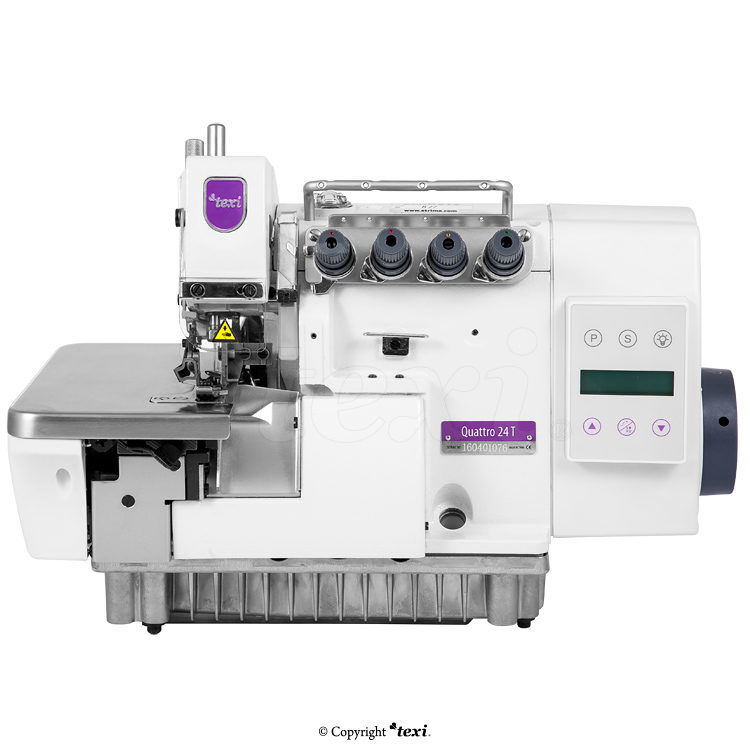

TEXI QUATTRO 24 T PREMIUM EX
4-thread, mechatronic overlock machine with needles positioning - complete sewing machine - 2 years warranty
Industrial sewing › Overlock machines

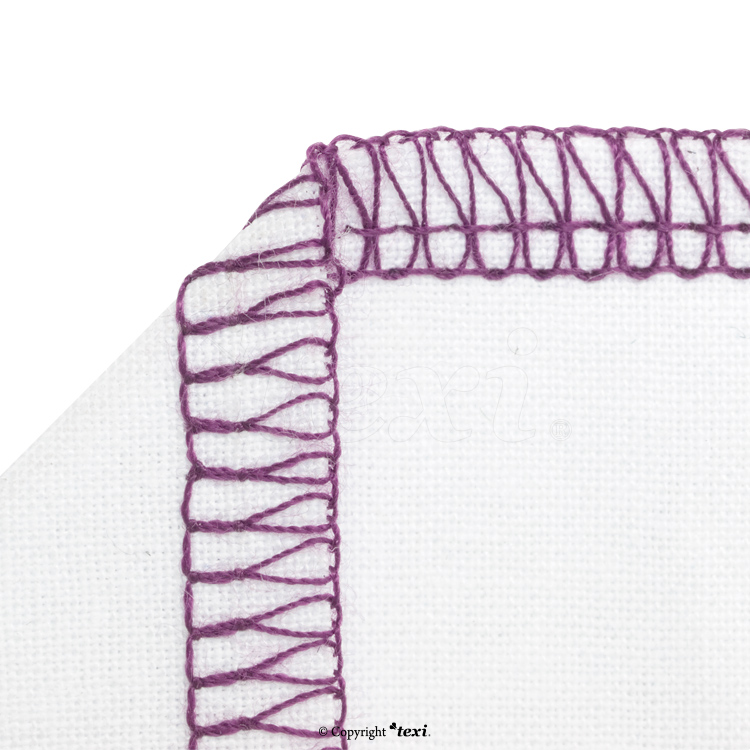

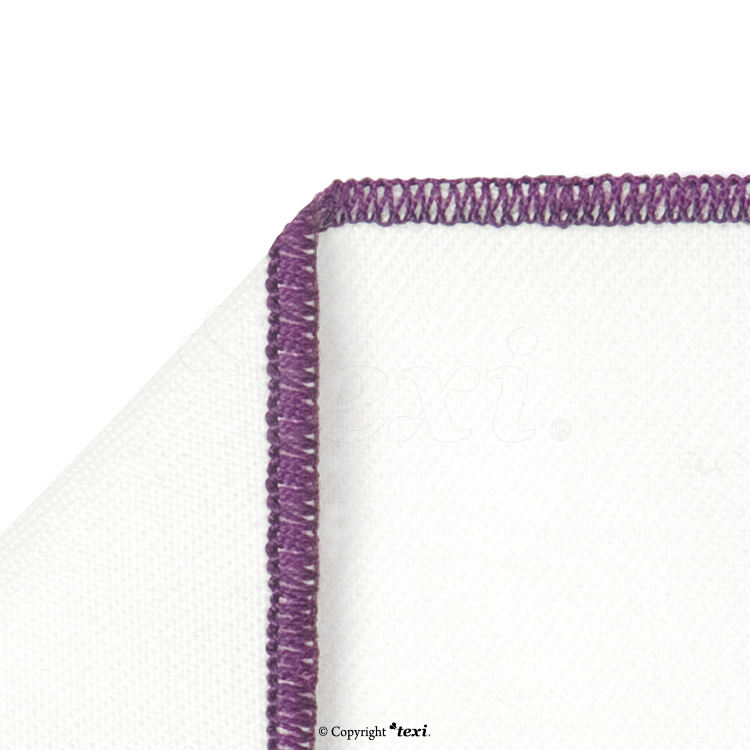

2-needles / 4-threads overlock (safety stitch) for light and medium materials with the possibility of easy change for 3-threads stitch, e.g. very narrow and dense overedging (option with adequate set). Now with energy-saving AC Servo motor, control box and power switch integrated into machine head (mechatronics "all-in-one" set). Ideal for sewing atelier and alteration shop. Perfect for industry, fast and user friendly.
ENERGY SAVING AC SERVO MOTOR AND CONTROL BOX INTEGRATED INTO MACHINE HEAD
The best version PREMIUM EX comes with 2 year warranty. Thanks to DIRECT DRIVE Servo Motor user got more silence without adverse vibrations. Standard equipped with energy-saving LED lamp for lighting of working field.
- for sewing light and medium fabrics
- maximum sewing speed 6.500 s.p.m.
- differential feed
- direct drive type needle bar
- needles gauge 2 mm
- total seam width 6 mm
- stitch length up to 4 mm
- energy-saving, DIRECT DRIVE AC SERVO MOTOR, voltage 220-240V
- 70% energy-saving
- quiet work, minimized vibrations
- energy-saving LED lamp for lighting of working field
- central lubrication system
- needle system B-27
TEXI PREMIUM EX package for TEXI QUATTRO includes:
2 YEARS INDUSTRIAL WARRANTY PREMIUM EX
Texi industrial overlock machines have 2-years, full warranty
STAND TEXI PREMIUM SILVER - steel, stable and durable universal stand with height adjustment. Powder painted in silver colour RAL 9006, which fits to line of Ergolinia chairs. Set with two pedals: wide and narrow.
TABLE TOP TQC T TEXI PREMIUM - the highest quality table top made of moisture resistant birch plywood (30 layers) which perfectly damps vibrations. PREMIUM top plate surface is coated with a special laminate with a structure suitable for the textile industry. Maximum resistant to impact, abrasion and splinters. Sides protected by ABS slats. Deflected table top's front facilitate access to the machine head. TEXI standard is "submerged" overlock machine, assembled on under-table plate made of high-class, 22 layers plywood, 28 mm thick which ensures machine stability (unique and the best solution). On request possible assembly on table top.
TEXI PREMIUM table tops do not contain harmful ingredients.
TITANIUM Ti500 - 5" (12 cm) titanium coated thread clip with lifetime guarantee.
Enjoy the silence, save energy.
|Type of fabric||medium|
|Number of threads||4|
|LED lighting of working field||yes|
|Presser foot lift height||6 mm|
|Max. sewing speed||6.500 s.p.m.|
|Table top||standard 105 x 50 cm|
|Warranty period||24 months|
|Needle gauge||2 mm|
|Overlock machine for application||universal|
|Overedging width||4.0 mm|
|Total seam width||6.0 mm|
|Max. sewing speed||7000 s.p.m.|
|Power supply||220-240 V|
