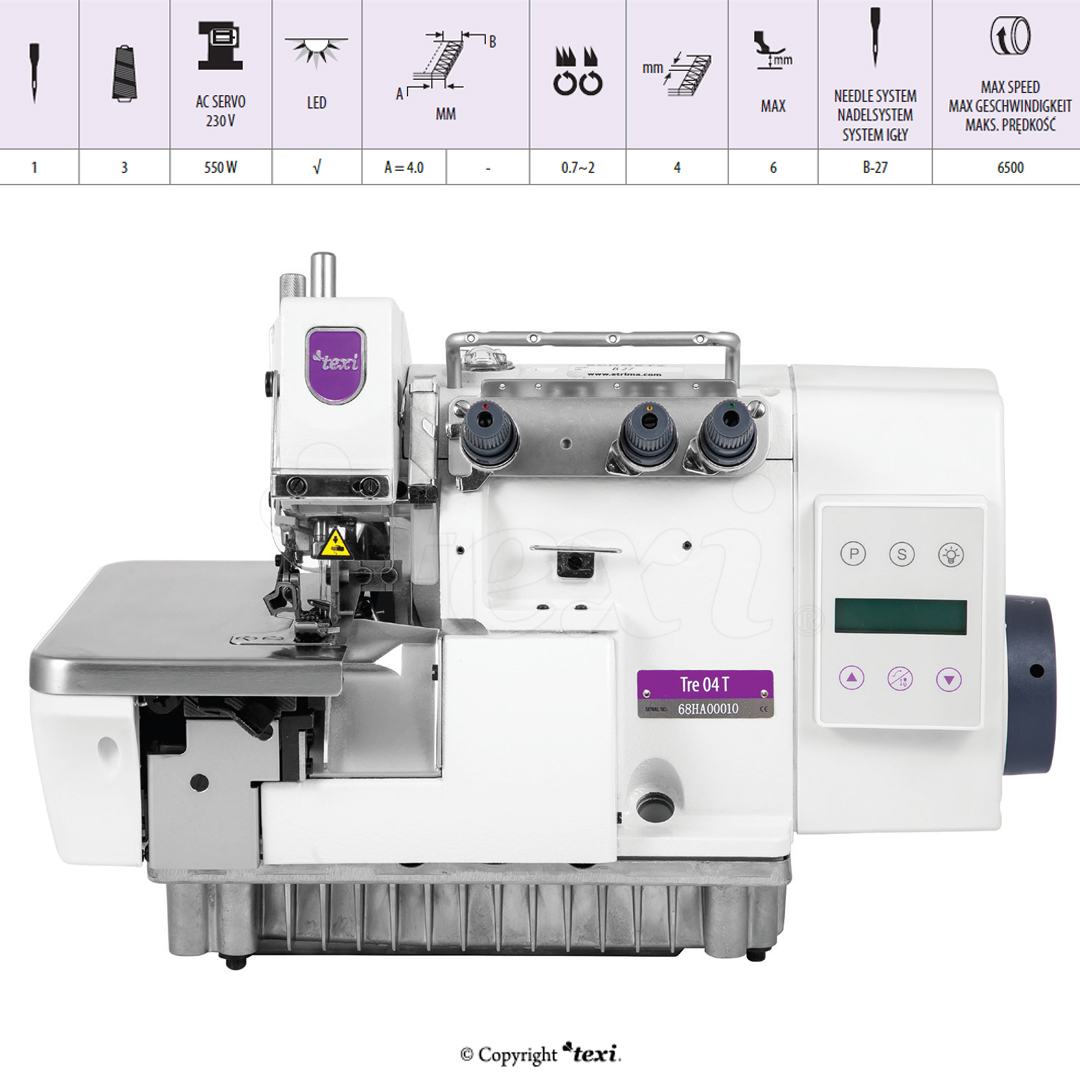

TEXI TRE 04 T PREMIUM EX

3-threads mechatronic overlock machine with needles positioning - complete sewing machine with 2 years warranty

Industrial sewing Overlock machines

3-threads mechatronic overlock machine with needles positioning - complete sewing machine with 2 years warranty
3-threads mechatronic overlock machine with needles positioning - complete sewing machine with 2 years warranty
3-threads mechatronic overlock machine with needles positioning - complete sewing machine with 2 years warranty
3-threads mechatronic overlock machine with needles positioning - complete sewing machine with 2 years warranty

Description:

1-needle / 3-threads mechatronic overlock machine with needles positioning for light and medium fabrics. Ideal for sewing atelier and alteration shop. Perfect for industry, fast and user friendly.

NEW DESIGN
DIRECT DRIVE
ENERGY SAVING AC SERVO MOTOR
MORE SILENCE
MORE EFFICIENCY

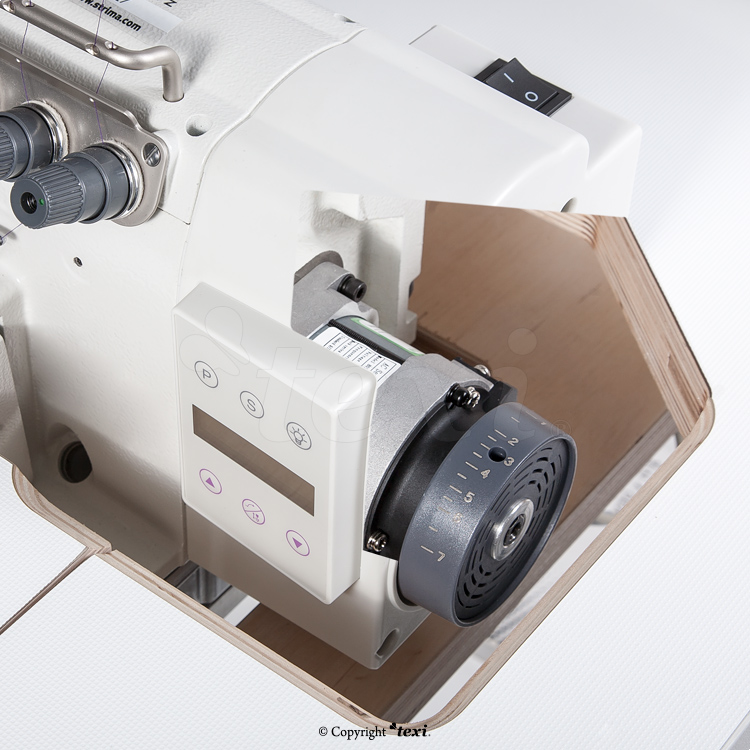

The best version PREMIUM EX comes with 2 year warranty. Thanks to DIRECT DRIVE Servo Motor user got more silence without adverse vibrations. Standard equipped with energy-saving LED lamp for lighting of working field.

Technical specification:
- for sewing light and medium fabrics
- maximum sewing speed 7 000 s.p.m.
- differential feed
- direct drive type needle bar
- seam width 4 mm
- stitch length up to 4 mm
- energy-saving, DIRECT DRIVE AC SERVO MOTOR, voltage 220-240V
- 70% energy-saving
- quiet work, minimized vibrations
- energy-saving LED lamp for lighting of working field
- central lubrication system
- needles system B-27

TEXI PREMIUM EX package for TEXI TRE 04 T includes:

2 YEARS WARRANTY PREMIUM EX
Texi industrial overlock machines have 2-years, full warranty.

STAND TEXI PREMIUM SILVER - steel, stable and durable universal stand with height adjustment. Powder painted in silver colour RAL 9006, which fits to line of Ergolinia chairs. Set with two pedals: wide and narrow.

TABLE TOP TQC T TEXI PREMIUM - the highest quality table top made of moisture resistant birch plywood (30 layers) which perfectly damps vibrations. PREMIUM top plate surface is coated with a special laminate resistant to impact, abrasion and splinters. Sides protected by ABS slats. Deflected table top's front facilitate access to the machine head.
TEXI standard is "submerged" safety stitch machine, assembled on under-table plate made of high-class, 22 layers plywood, 28 mm thick which ensures machine stability (unique and the best solution). On request possible assembly on table top.
TEXI PREMIUM table tops do not contain harmful ingredients.

TITANIUM Ti500 - 5" (12 cm) titanium coated thread clip with lifetime guarantee.

Enjoy the silence, save energy.

Technical specification:

Type of fabric
Number of threads
LED lighting of working field
Presser foot lift height
Needle system
Max. sewing speed
Table top
Warranty period
Needle gauge
Overlock machine for application
Overedging width
Total seam width
Max. sewing speed
Power supply
